Combined manifolds

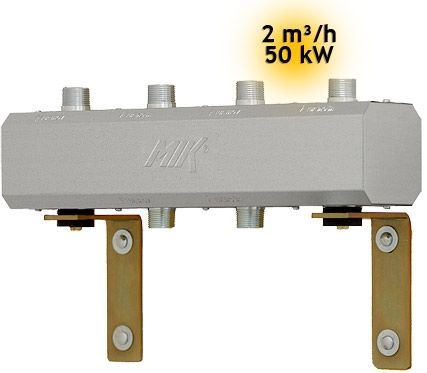

HV
- Hot water flow rate:
- up to 2 m³/h
- Output at Δt=20°C:
- up to 50 kW
- Distance between supports:
- 125 mm
- All connections:
- R 1"
HVT
- Hot water flow rate:
- up to 2 m³/h
- Output at Δt=20°C:
- up to 50 kW
- Distance between supports:
- 125 mm
- All connections:
- R 1"

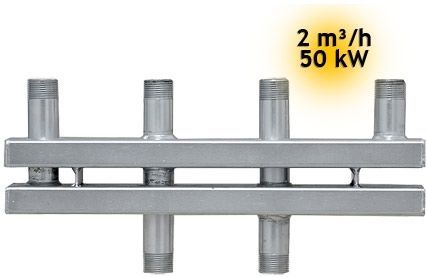

HVI
- Hot water flow rate:
- up to 2 m³/h
- Output at Δt=20°C:
- up to 50 kW
- Distance between supports:
- 125 mm
- All connections:
- R 1"
HV70
- Hot water flow rate:
- up to 3 m³/h
- Output at Δt=20°C:
- up to 70 kW
- Distance between supports:
- 125 mm
- Boiler connections:
- R 1¼"
- Unit connections:
- R 1"

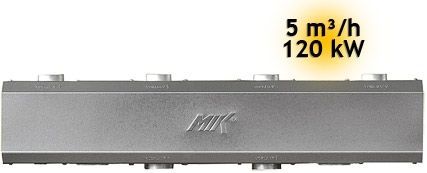

HVM
- Hot water flow rate:
- p to 5 m³/h
- Output at Δt=20°C:
- up to 120 kW
- Distance between supports:
- 200 mm
- Boiler connections overhead:
- R 1¼"
- Boiler connections underneath:
- R ½"

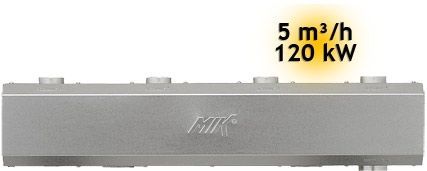

HVM-SU
- Hot water flow rate:
- p to 5 m³/h
- Output at Δt=20°C:
- up to 120 kW
- Distance between supports:
- 200 mm
- Boiler connections overhead:
- R 1¼"
- Boiler connections underneath:
- R ½"
HV 60 ... HV 500
- Hot water flow rate:
- up to 260 m³/h
- Output at Δt=20°C:
- up to 5800 kW
- Distance between supports:
- variabel
